Project 1
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |

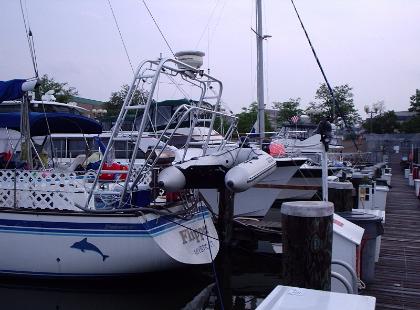

| Radar Arch / Dingy davit |
I designed the radar arch so it would not increase the
overall length of the boat. The davit was designed to
allow the dingy to be suspended beyond the reverse
kick of the stern. It incorporates the life lines and
positions the radar above the boom to avoid
reflections. The arch and davit are constructed of
marine grade anodized aluminum and weighs less
than 150 lbs. It was through bolted in the same
mounting area as the pushpit used. The existing aft
rail was mounted to the arch providing full lifeline
coverage.
